XR
LSV
Length
143 in

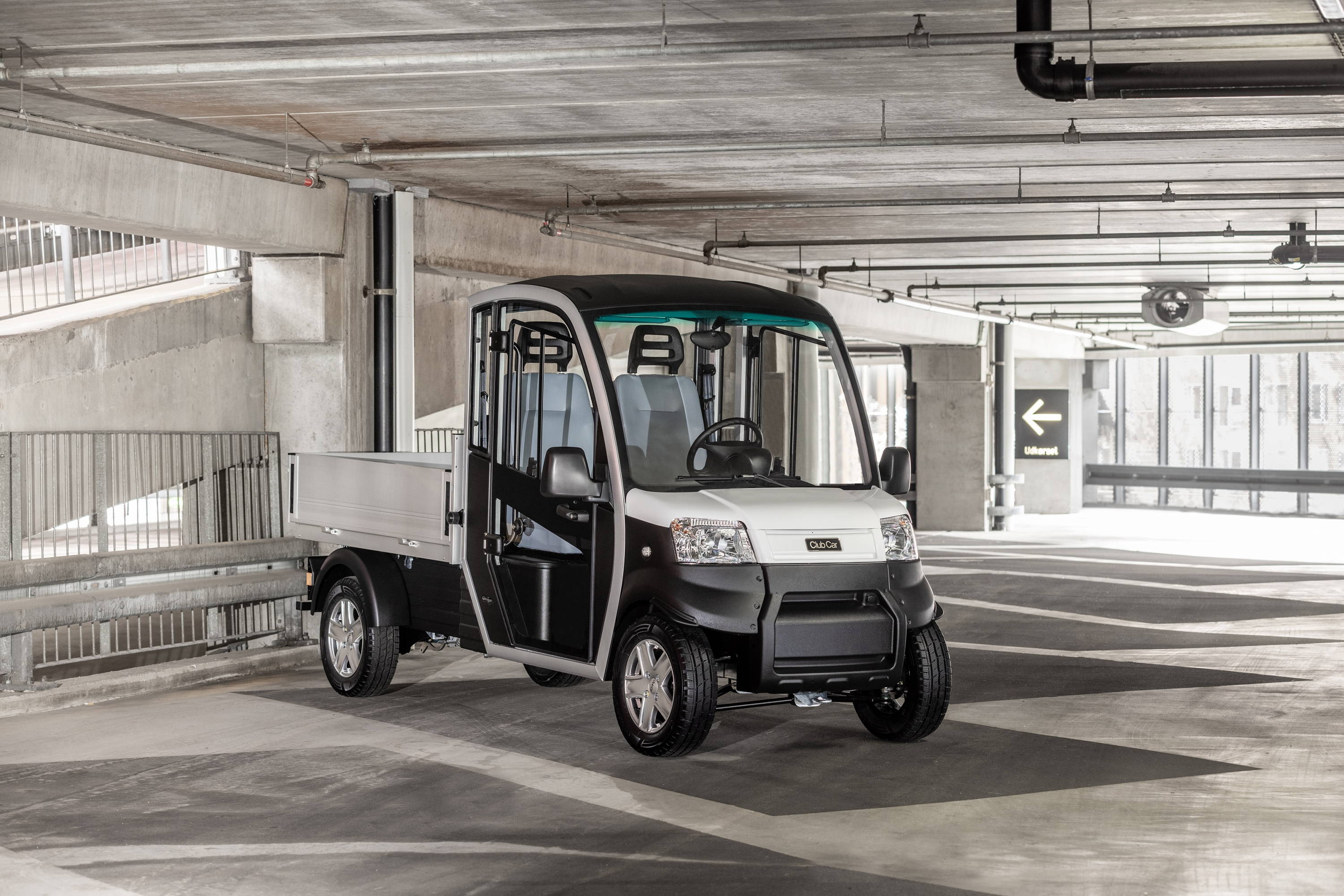

CLUB CAR
URBAN
URBAN
MODELS
MODELS
FEATURES
LOCKABLE FRONT STORAGE
CABIN HEATER
DAB BLUETOOTH STEREO
DIGITAL INSTRUMENT CLUSTER
CUPHOLDERS
STORAGE COMPARTMENT
SPECIFICATIONS
Dimensions
Performance
XR
LSV
Top Speed
19 mph
25 mph
Turning Radius
168 in
168 in
Operating Grade
< 20%
< 20%
Equipment
XR
LSV
Backup Camera
Optional
Standard
Hydraulic Brake System
Disc Front, Drums Rear
Disc Front, Drums Rear
Electronic Parking Brake
Standard
Standard
Exterior Light Package
Standard
Standard
Chassis
Steel, Hot Dip Galvanized
Steel, Hot Dip Galvanized
Tires
165/70 R13
165/70 R13
Cabin Heater
Optional
Optional
Motor
XR
LSV
Motor 48V
High Efficient Phase-3 AC Engine
High Efficient Phase-3 AC Engine
Continuous Power (60 Min)
8 kW / 10.7 hp
8 kW / 10.7 hp
Peak Power
14.3 kW / 19.2 hp
14.3 kW / 19.2 hp
Motor Controller
Curtis 350 A
Curtis 350 A
Bed Options
Pick-Up Bed
Fixed or Tilt Pickup (1.6m) = 50.04 in W x 65.87 in L x 17.72 in H
Fixed (2.1m) = 50.04 in W x 85.63 in L x 17.72 in H
Van Box
Fixed Van Box (2.1m) = 51.18 in W x 64.96 in L x 46.85 in H
Fixed (2.8m) = 51.18 in W x 85.24 in L x 46.85 in H
Pick-Up w/ Mesh Cage
Fixed (1.6m) = 50.04 in W x 65.87 in L x 73.9 in H
Fixed (2.1m) = 50.04 in W x 85.63 in L x 73.9 in H
Batteries
XR
LSV
Standard Battery
FLA T145 Heavy Duty
FLA T145 Heavy Duty
Lithium Battery Options
9.2 kWh / 180 ah
10.2 kWh / 200 ah (w/ Heating Blanket
12.2 kWh / 240 ah
9.2 kWh / 180 ah
10.2 kWh / 200 ah (w/ Heating Blanket
12.2 kWh / 240 ah
Range (Lithium 12.2 kWh)
62 Miles
62 Miles
Warranty
XR
LSV
Vehicle Frame
5 Years
5 Years
Suspension / Equipment
3 Years
3 Years
Trojan FLA Batteries
3 Years
3 Years
9 kWh or 12 kWh Lithium Batteries
5 Years
5 Years
10 kWh Lithium Batteries
4 Years
4 Years
What is a Low Speed Vehicle (LSV)?
SAFETY STANDARDS OF CLUB CAR LSV’S
The Urban LSVs come standard with street legal safety and cab features such as 3-pt seatbelts, head and tail lights, mirrors, backup camera system, AVAS, windshield wipers, heated windscreen, rear bulkhead glass, automatic park brake, speed switch, premium instrument cluster, and lockable storage.
All LSV vehicles must meet all U.S. federal safety standards (FMVSS 500) which require a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.
In addition to federal, local and state laws the Society of Automotive Engineers created a voluntary industry standard for LSVs with SAEJ2358 LSV. This voluntary safety standard includes additional detailed requirements.
Club Car LSVs meet not only FMVSS500 LSV standards but also fully comply with the more stringent automotive SAEJ2358 standards with the inclusion of Occupant Protective Structures on all cars.
SPECIFICATIONS
Dimensions
Length
143 in
Width
69 in / 54 in
Height
74 in
Wheelbase
108 in
Load Bed Length
64 in
Performance
Top Speed
(XR) - 19 mph
(LSV) - 25 mph
Turning Radius
168 in
Operating Grade
< 20%
Equipment
Back-Up Camera
(XR) - Optional
(LSV) - Standard
Hydraulic Brake System
Disc Front, Drums Rear
Electronic Parking Brake
Standard
Exterior Light Package
Standard
Chassis
Steel, Hot Dip Galvanized
Tires
165/70 R13
Cabin Heater
Optional
Motor
Motor 48V
High Efficient Phase-3 AC Engine
Continuous Power (60 Min)
8 kW / 10.7 hp
Peak Power
14.3 kW / 19.2 hp
Motor Controller
Curtis 350 A
Bed Options
Pick-Up Bed
Fixed or Tilt Pickup (1.6m) = 50.04 in W x 65.87 in L x 17.72 in H
Fixed (2.1m) = 50.04 in W x 85.63 in L x 17.72 in H
Van Box
Fixed Van Box (2.1m) = 51.18 in W x 64.96 in L x 46.85 in H
Fixed (2.8m) = 51.18 in W x 85.24 in L x 46.85 in H
Pick-Up w/ Mesh Cage
Fixed (1.6m) = 50.04 in W x 65.87 in L x 73.9 in H
Fixed (2.1m) = 50.04 in W x 85.63 in L x 73.9 in H
Batteries
Standard Battery
High Efficient Phase-3 AC Engine
Lithium Battery Options
9.2 kWh / 180 ah
10.2 kWh / 200 ah (w/ Heating Blanket)
12.2 kWh / 240 ah
Range (Lithium 12.2 kWh)
62 Miles
Warranty
Vehicle Frame
5 Years
Suspension / Equipment
3 Years
Trojan Batteries
3 Years
9 kWh / 12 kWh Batteries
5 Years
10 kWh Batteries
4 Years
What is a Low Speed Vehicle (LSV)?
SAFETY STANDARDS OF CLUB CAR LSV’S
The Urban LSVs come standard with street legal safety and cab features such as 3-pt seatbelts, head and tail lights, mirrors, backup camera system, AVAS, windshield wipers, heated windscreen, rear bulkhead glass, automatic park brake, speed switch, premium instrument cluster, and lockable storage.
All LSV vehicles must meet all U.S. federal safety standards (FMVSS 500) which require a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.
In addition to federal, local and state laws the Society of Automotive Engineers created a voluntary industry standard for LSVs with SAEJ2358 LSV. This voluntary safety standard includes additional detailed requirements.
Club Car LSVs meet not only FMVSS500 LSV standards but also fully comply with the more stringent automotive SAEJ2358 standards with the inclusion of Occupant Protective Structures on all cars.
